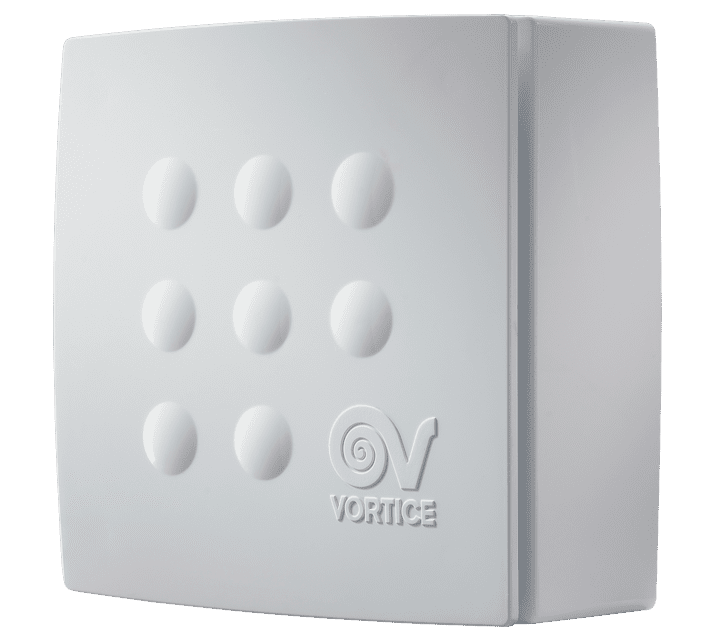

CENTRIFUGAL DUCT FAN MICRO 100

features

Main features

  • Material: white ABS plastic

  • Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings

  • Nominal diameter 100 mm

  • Minimum air flow 65 m3/h

  • Maximum air flow: 90 m3/h

Technical Data Sheet

  • Absorbed Power first speed: 20 W

  • Frequency: 50 Hz

  • Weight: 1,80 Kg

  • Voltage: 220 - 240 V

  • RPM max: 1600

  • RPM min: 1180

  • Max ambient temperature for continuous operation: 50º

Energy Data

  • Specific Energy Consumption class SEC average: 0,0 kWh/m2a

  • Specific Energy Consumption class SEC cold: -13,3 kWh/m2a

  • Specific Energy Consumption class SEC warm: 7,7 kWh/m2a

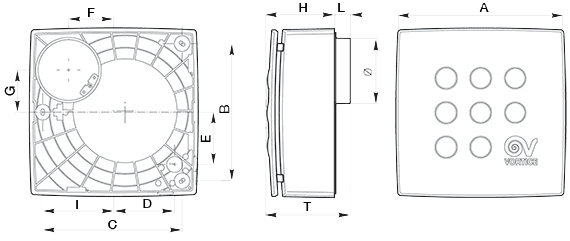

Dimensions

  • Size A: 239 mm

  • Size B: 195 mm

  • Size C: 197 mm

  • Size D: 85 mm

  • Size E: 74 mm

  • Size F: 64 mm

  • Size G: 60 mm

  • Size H: 97 mm

  • Size I: 100 mm

  • Size L: 20 mm

  • Size T: 117 mm
