DEEP FRAME

Recessed installation in false ceilings from 1 to 30 mm for Frame versions (with rim) using torsion springs.

Available in models with discharge lamps equipped with high-performing optics (ECA compliance).

Metal outer rim and steel sheet lamp compartment.

Die-cast aluminium optical assemblies in backward position with respect to the installation surface, equipped with articulated joints that allow for +/- 30° inclination with respect to the horizontal and vertical axes.

The electrical wiring necessary for operation of fittings with discharge lamps is contained in dedicated control gears (to be ordered separately).

Versions with high-performance LEDs with warm white and neutral white monochromatic emission; available with passive dissipation (with lamellar radiator) or active dissipation (with cooling fan).

Easy fixing system without tools.

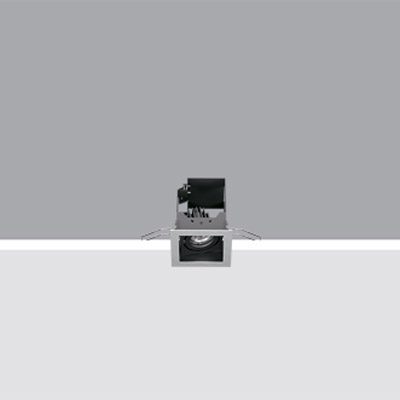

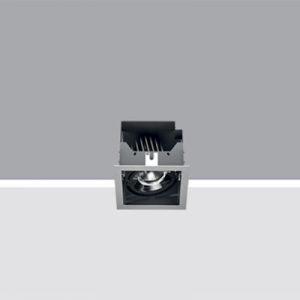

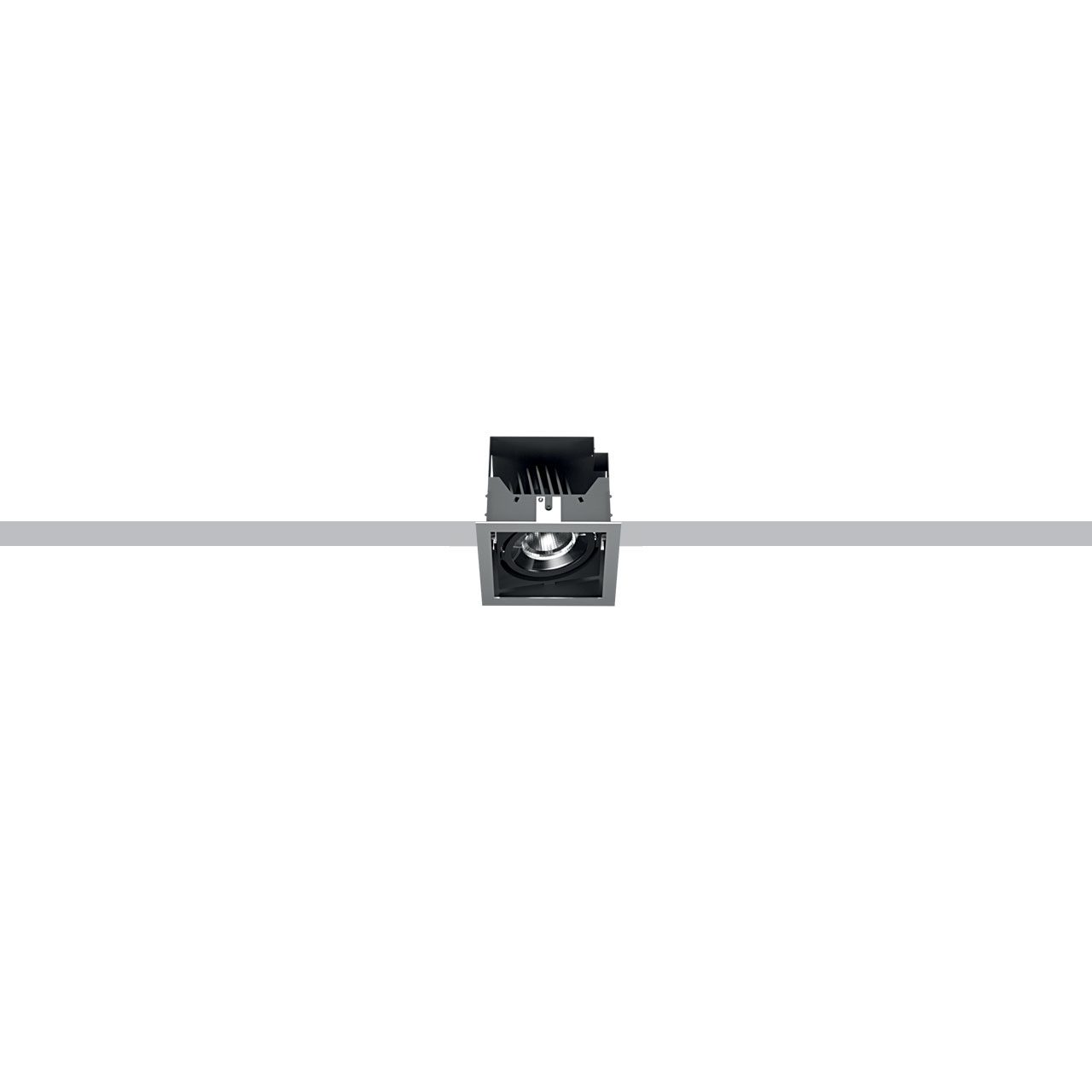

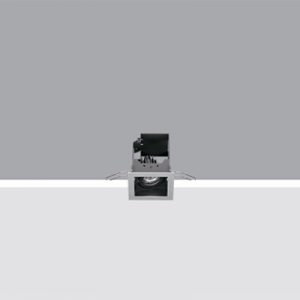

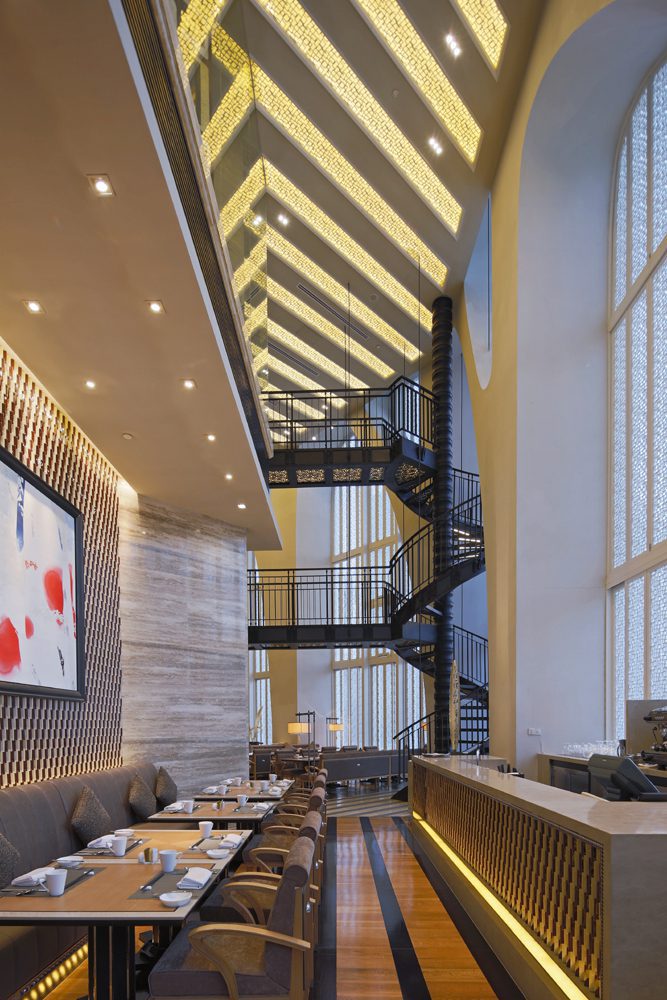

PHOTO GALLERY

TECHNICAL SPECIFICATIONS

Frame version - 102 x 102
Light Source W Lm K Optic Control Size (mm)
LED 8.4 950 Warm 3000 M 18° 110 x 110 x 132
LED 8.4 950 Warm 3000 M 18° DALI 110 x 110 x 132
LED 8.4 950 Warm 3000 F 26° 110 x 110 x 132
LED 8.4 950 Warm 3000 F 26° DALI 110 x 110 x 132
LED 8.4 950 Warm 3000 WF 42° 110 x 110 x 132
LED 8.4 950 Warm 3000 WF 42° DALI 110 x 110 x 132
Frame version - 167 x 167
Light Source W Lm K Optic Control Size (mm)
LED 9.1 650 Warm 3000 SS 6° 180 x 180 x 155
LED 9.1 650 Warm 3000 SS 6° DALI 180 x 180 x 155
LED 31 3000 Warm 3000 S 14° 180 x 180 x 155
LED 31 3000 Warm 3000 S 14° DALI 180 x 180 x 155
LED 27 3100 Warm 3000 F 38° 180 x 180 x 155
LED 27 3100 Warm 3000 F 38° DALI 180 x 180 x 155
LED 27 3100 Warm 3000 WF 48° 180 x 180 x 155
LED 27 3100 Warm 3000 WF 48° DALI 180 x 180 x 155
