LASER BLADE iN 30

Modular lighting systems for continuous lines.

Minimal (frameless) version made with extruded aluminium profile.

Available in two downlight solutions; low contrast for general lighting with frosted diffuser screen; high contrast with controlled luminance UGR

High contrast can be ceiling mounted or installed as a pendant; modules supplied in two lengths; possibility of individual installation or grouping in a continuous line, completing the modules with accessories supplied.

Available with electronic and DALI control gear.

High level of light output.

Pendant version with cables equipped with a system for millimetric regulation.

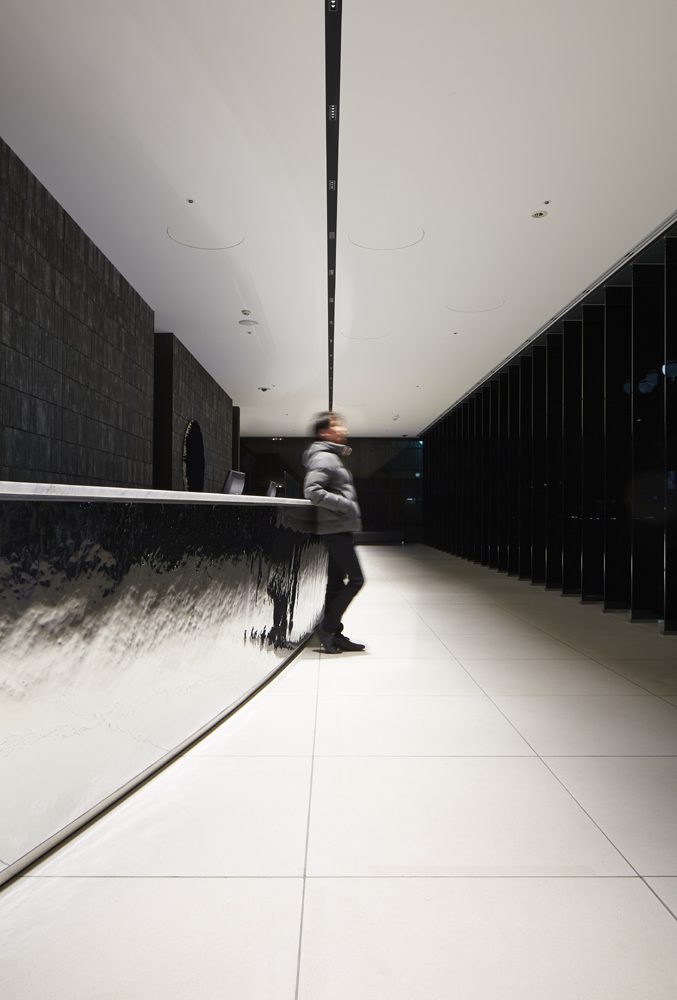

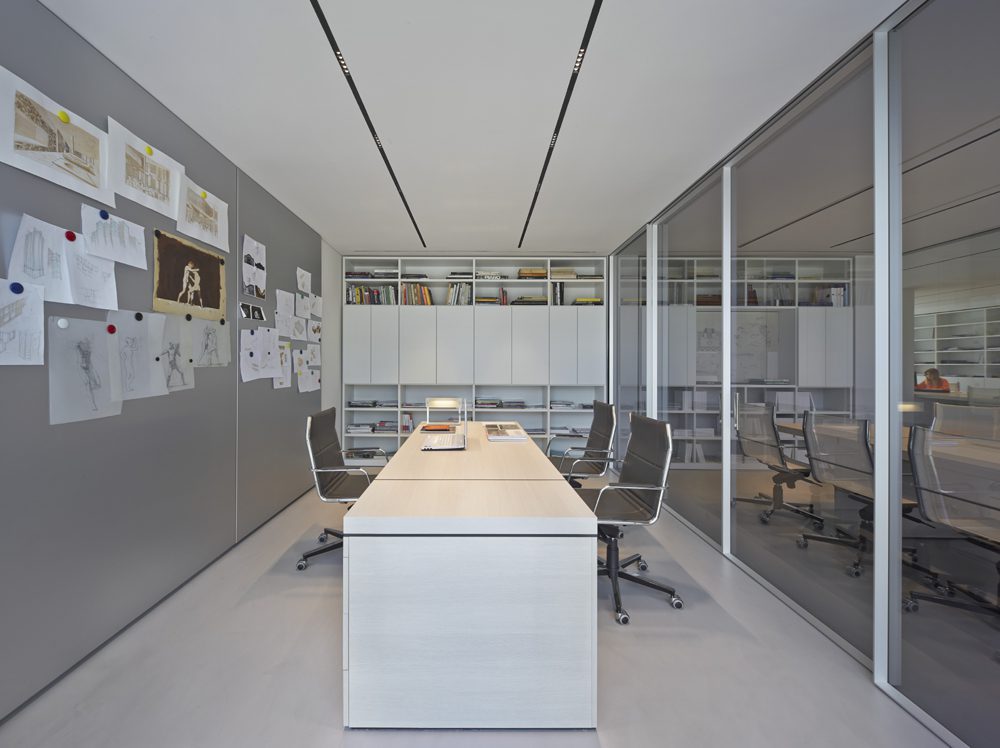

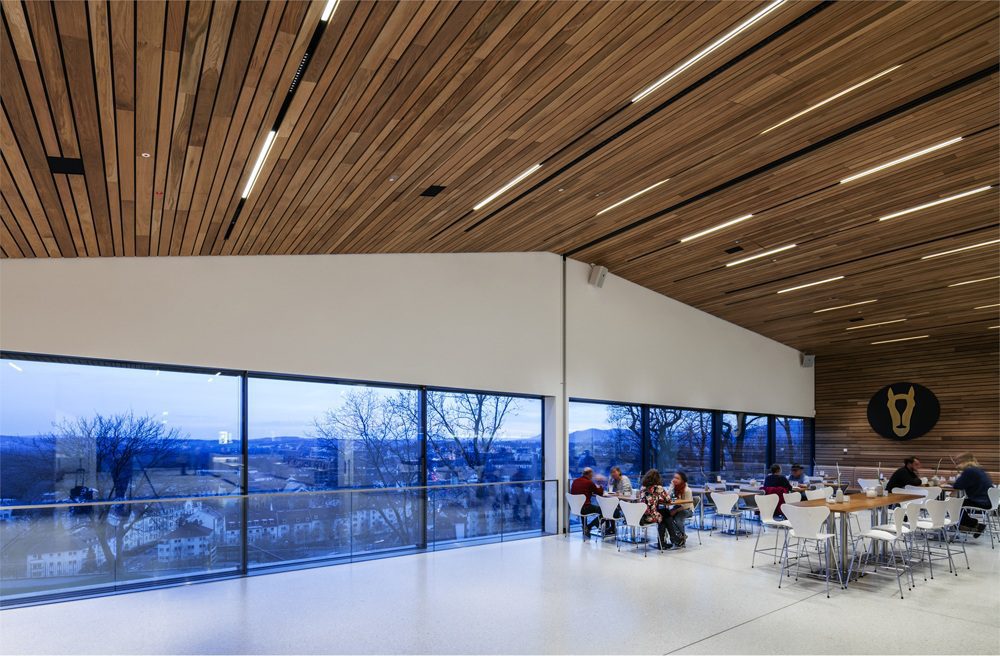

PHOTO GALLERY

TECHNICAL SPECIFICATIONS

Light Source W Lm K Optic Control Size (mm)
LED 2x10 2x950 Neutral 4000 WF 48° 1197 x 32 x 75
LED 2x10 2x950 Warm 3000 WF 48° 1197 x 32 x 75
LED 2x10 2x950 Neutral 4000 WF 48° DALI 1197 x 32 x 75
LED 2x10 2x950 Warm 3000 WF 48° DALI 1197 x 32 x 75
LED 2x21 2x1900 Neutral 4000 WF 48° 1462 x 32 x 75
LED 2x21 2x1900 Warm 3000 WF 48° 1462 x 32 x 75
LED 2x21 2x1900 Neutral 4000 WF 48° DALI 1462 x 32 x 75
LED 2x21 2x1900 Warm 3000 WF 48° DALI 1462 x 32 x 75
