LASER BLADE SYSTEM53

Designed by OMA.

Modular system for creating “frameless” recessed channels with a constant opening of 53 mm.

Extruded aluminum structural profile with black finish treatment.

High contrast light modules for accent lighting, with tilting adjustability +/- 45°.

Fixed modules for low contrast emission, for general and wall washer lighting.

All modules come complete with integrated power supply.

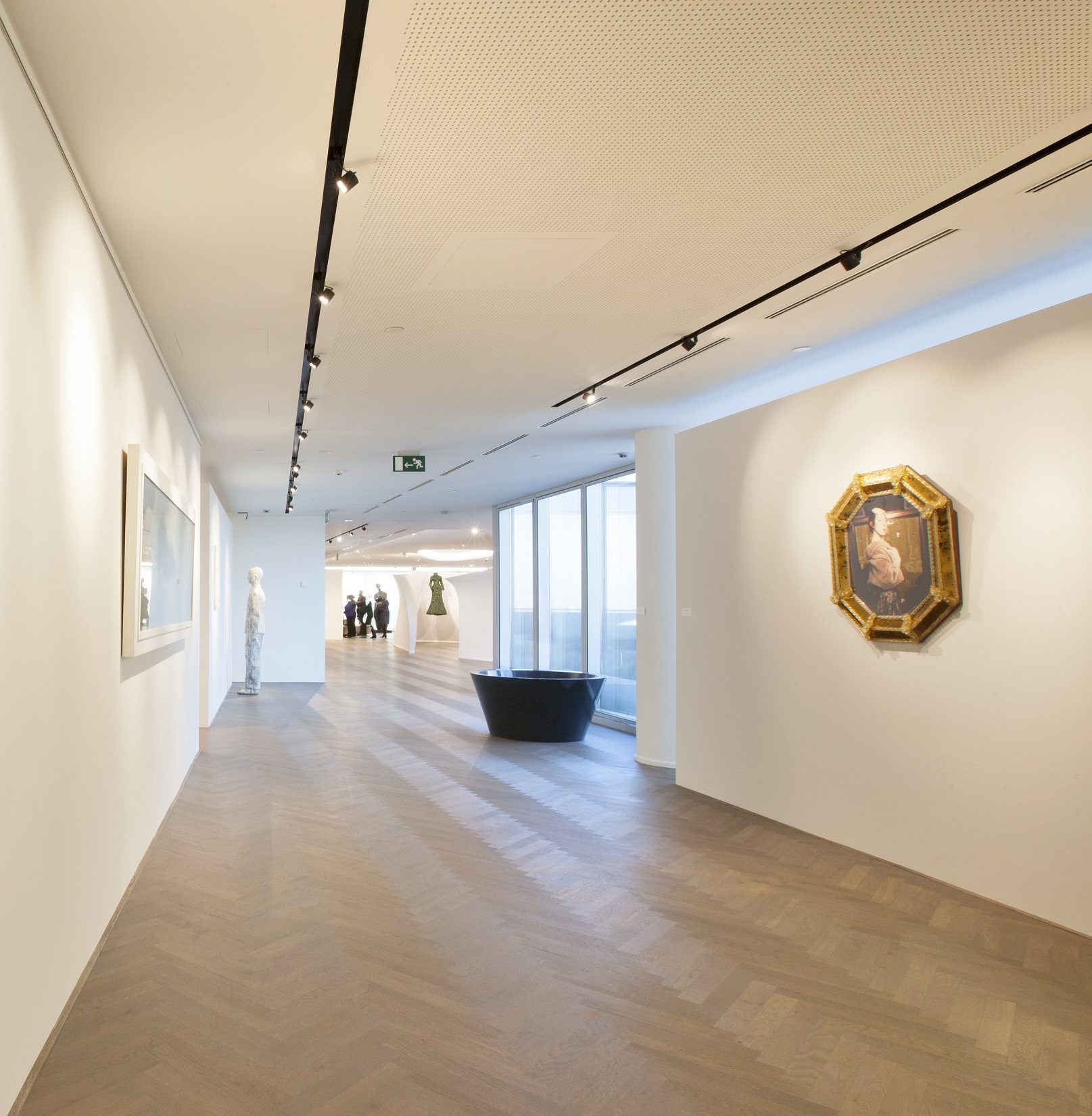

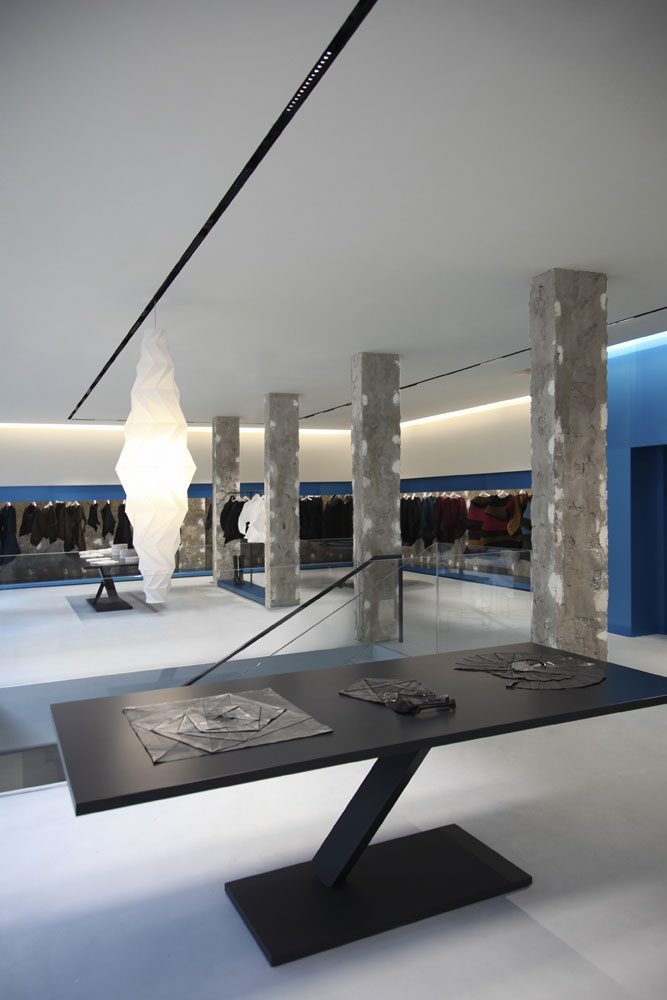

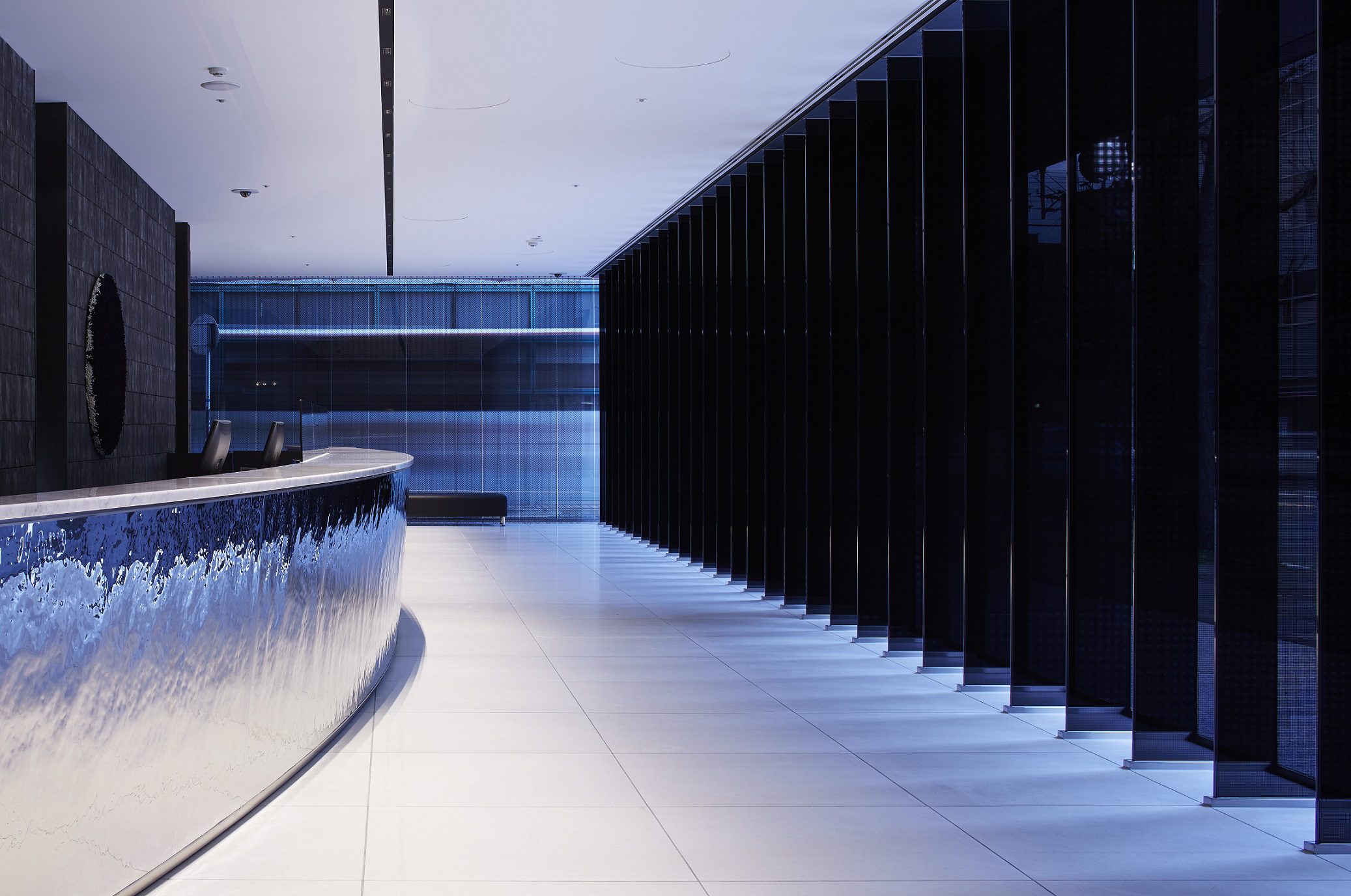

PHOTO GALLERY

TECHNICAL SPECIFICATIONS

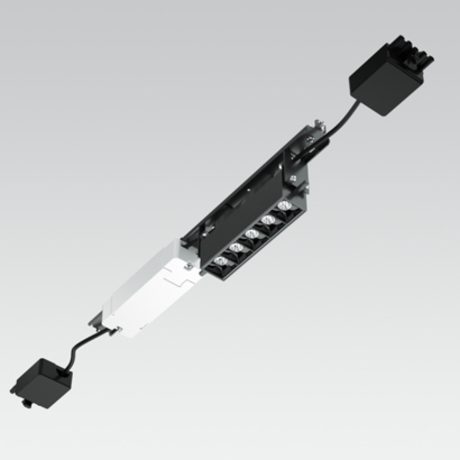

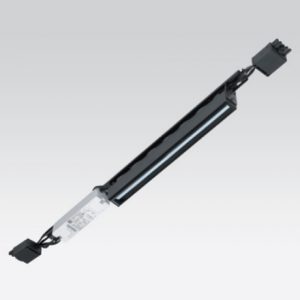

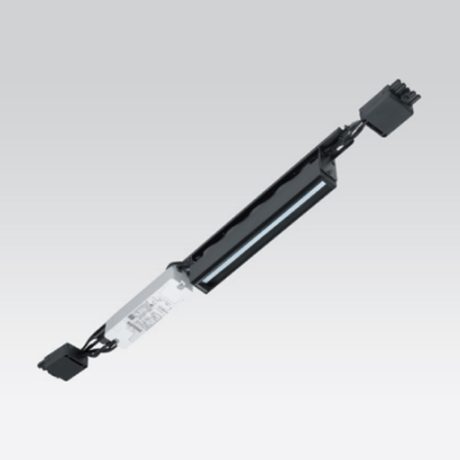

Adjustable module - High contrast
Light Source W Lm K Optic Control Size (mm)
LED 10 850 Warm 3000 S 12° DALI 599 x 93
LED 10 850 Warm 3000 F 32° DALI 599 x 93
LED 10 920 Neutral 4000 WF 48° DALI 599 x 93
LED 10 850 Warm 4000 WF 48° DALI 599 x 93

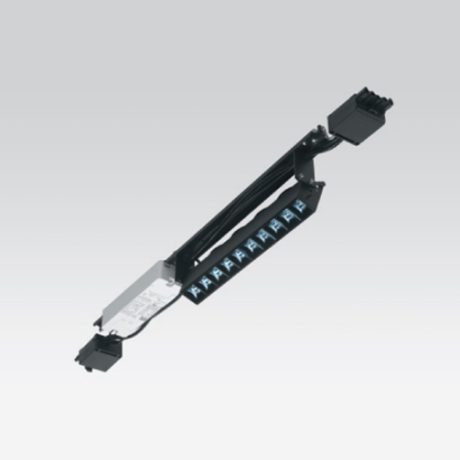

Adjustable module - High contrast
Light Source W Lm K Optic Control Size (mm)
LED 21 1700 Warm 3000 S 12° DALI 751 x 93
LED 21 1700 Warm 3000 F 32° DALI 751 x 93
LED 21 1800 Neutral 4000 WF 48° DALI 751 x 93
LED 21 1700 Warm 3000 WF 48° DALI 751 x 93

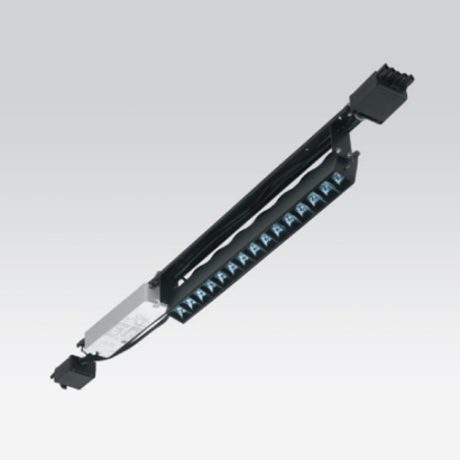

Adjustable module - High contrast
Light Source W Lm K Optic Control Size (mm)
LED 31 2500 Warm 3000 S 12° DALI 904 x 93
LED 31 2500 Warm 3000 F 32° DALI 904 x 93
LED 31 2700 Neutral 4000 WF 48° DALI 904 x 93
LED 31 2500 Warm 3000 WF 48° DALI 904 x 93

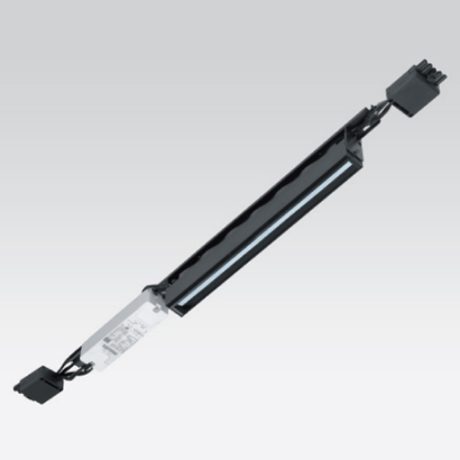

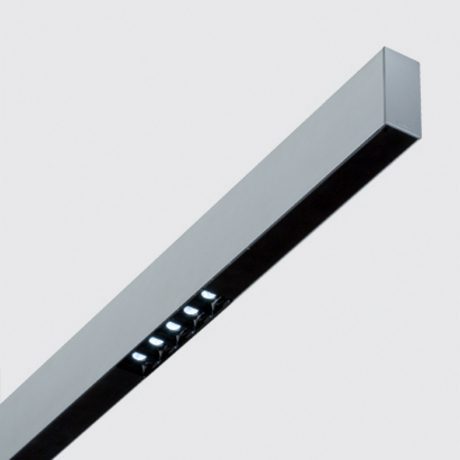

Linear module - High contrast
Light Source W Lm K Optic Control Size (mm)
LED 2x10 2x950 Neutral 4000 WF 48° DALI 1197 x 32 x 75
LED 2x10 2x950 Warm 3000 WF 48° DALI 1197 x 32 x 75
LED 2x21 2x1900 Neutral 4000 WF 48° DALI 1462 x 32 x 75
LED 2x21 2x1900 Warm 3000 WF 48° DALI 1462 x 32 x 75

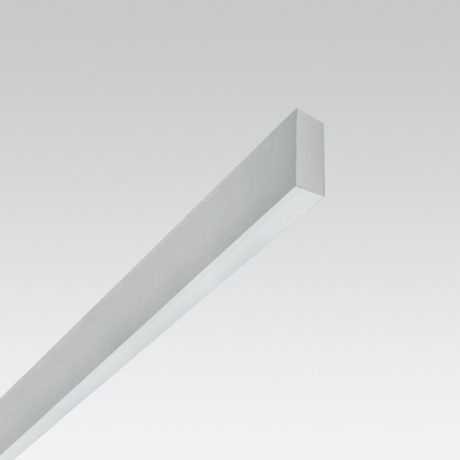

Linear module - Low contrast
Light Source W Lm K Optic Control Size (mm)
LED 17 2650 Neutral 4000 GL DALI 1197 x 32 x 75
LED 17 2450 Warm 3000 GL DALI 1197 x 32 x 75
LED 34 5300 Neutral 4000 GL DALI 2394 x 32 x 75
LED 34 4900 Warm 3000 GL DALI 2394 x 32 x 75

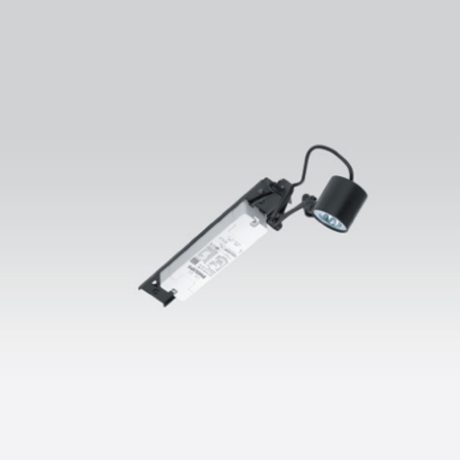

Module with adjustable spotlight
Light Source W Lm K Optic Control Size (mm)
LED 9 750 Warm 3000 S 10° DALI ø50
LED 9 1000 Neutral 4000 F 26° DALI ø50
LED 9 750 Warm 3000 F 26° DALI ø50
Wall Washer fixed module
Light Source W Lm K Optic Control Size (mm)
LED 21 1800 Neutral 4000 WW DALI 755x89
LED 21 1800 Warm 3000 WW DALI 755x89
Wall Washer fixed module
Light Source W Lm K Optic Control Size (mm)
LED 31 2700 Neutral 4000 WW DALI 905x96
LED 31 2700 Warm 3000 WW DALI 905x96
