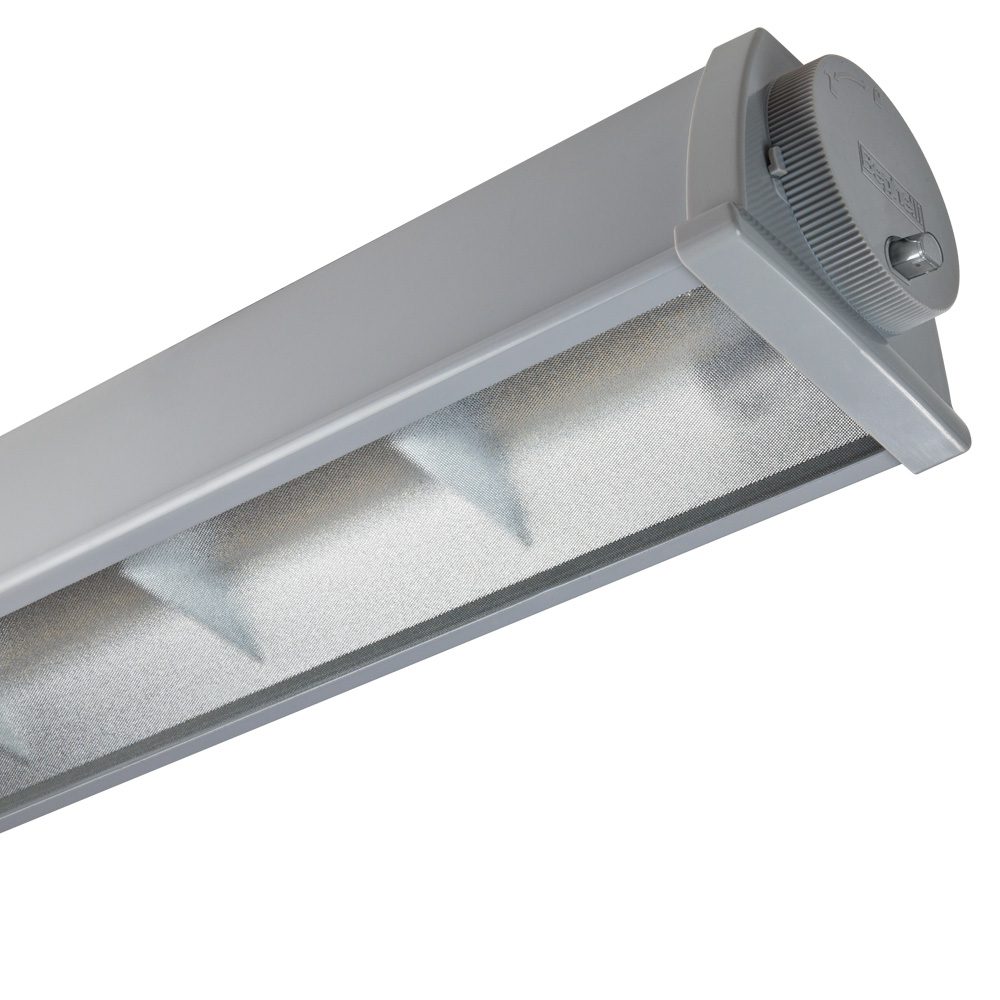

ACCIAIO ECO LED (New)

LED optic technology, high resistance

Excellent performance for LED lighting in the tertiary and industrial sector. The structural simplicity of Acciaio LED, combined with technical materials such as splined technopolymers and toughened glass, make it a product suitable for installation in particularly demanding conditions, thanks to protection grades IP66 and IK09. The whole allows the projection, through the microprismatic crystal, of a highly technological louvre specially designed for high-efficiency LEDs, to ensure the maximum of light output without glare. The innovative head with screw cap allows easy installation and easy connection with specific accessories such as the intelligent light sensor or the LED emergency module with built-in source and inverter.

Technical Specifications

Versions SD, ED
Installations Ceiling, suspensions
Body Polyester powder coated sheet steel
Optic Wide anti-glarealuminium
Diffuser Microprismatic toughened glass with high
Power 1x36, 2x36, 1x58, 2x58, 2x80 W
Light source LED
Room temperature -20°+40°C
Temperature 4000 K
Energy class A++
Degree of protection IP66
Dimensions (1x36 W) Length: 1225 mm | Width: 108 mm | Height: 90 mm
Dimensions (2x36 W) Length: 1225 mm | Width: 108 mm | Height: 90 mm
Dimensions (1x58 W) Length: 1225 mm | Width: 108 mm | Height: 90 mm
Dimensions (2x58 W) Length: 1225 mm | Width: 108 mm | Height: 90 mm
Dimensions (2x80 W) Length: 1565 mm | Width: 108 mm | Height: 90 mm

Acciaio Eco LED (SmartDriver System)

Power LED Power LED Flux Luminous efficiency
1x36 W 15 W 3150 lm 135 lm/W
2x36 W 30 W 5570 lm 135 lm/W
1x58 W 23 W 4400 lm 131 lm/W
2x58 W 46 W 8350 lm 135 lm/W
2x80 W 68 W 11800 lm 135 lm/W

Acciaio Eco LED (Electronic Driver System)

Power LED Power LED Flux Luminous efficiency
1x36 W 17 W 3150 lm 120 lm/W
2x36 W 25 W 5570 lm 120 lm/W
1x58 W 26 W 4400 lm 120 lm/W
2x58 W 52 W 8350 lm 120 lm/W

Acciaio Eco LED (EcoDriver System)

Power LED Power LED Flux Luminous efficiency
2x36 W 34 W 5400 lm 124 lm/W
2x58 W 50 W 8050 lm 122 lm/W
