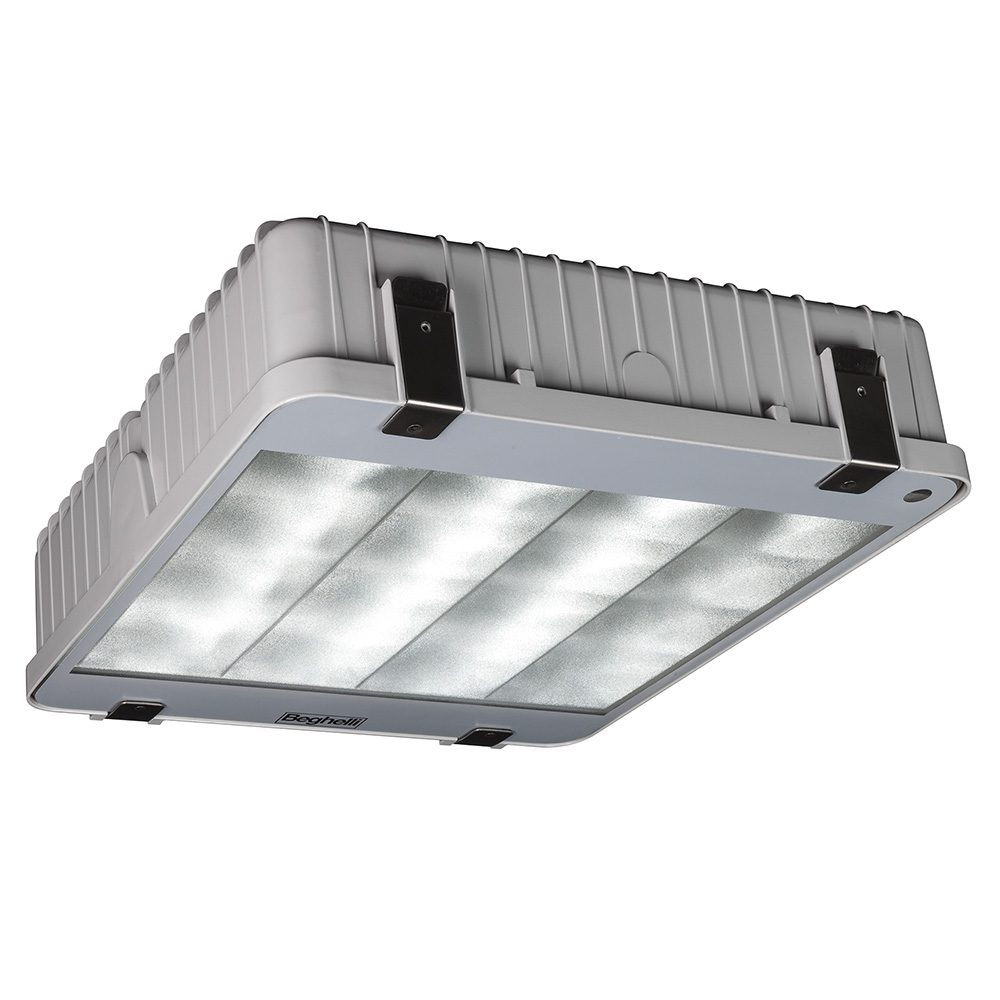

H250/400 LED (New)

Aluminium, steel and glass: sturdy and completely recyclable

A louvre that combines versatility, sturdiness and superlative technical lighting features, conceived for large structures with elevated installation heights. The triple possibility of light diffusion makes this a complete product in an industrial setting, solving the most varied lighting problems thanks to optics of the latest generation that focus on efficiency and glare control. The small dimensions of the housing allow the easy passage of overhead cranes or other internal moving stuctures: there are no mounting limits.

Technical Specifications

Versions SD
Installations Ceiling, suspensions
Body Die-cast aluminium RAL 7040
Optic Sheet metal with parabolic development in anti-iridescent, mirror finished, anodised aluminium, Wide,Concentrating, Ellipsoid
Screen Prismatic toughened glass 4mm
Power 250, 400 W
Light source LED
Room temperature -20°+40°C
Temperature 4000 K
Energy class A++
Degree of protection IP66
Dimensions (250 W) Length: 425 mm | Width: 413 mm | Height: 121 mm
Dimensions (400 W) Length: 425 mm | Width: 413 mm | Height: 121 mm

H250/400 LED (SmartDriver System)

Power Optic LED Power LED Flux Luminous efficiency
250 W diffusing 110 W 18500 lm 134 lm/W
400 W diffusing 216 W 35000 lm 128 lm/W
250 W concentrating 110 W 18500 lm 134 lm/W
400 W concentrating 216 W 35000 lm 128 lm/W
250 W elliptical 110 W 18500 lm 134 lm/W
400 W elliptical 216 W 35000 lm 128 lm/W
