PRIMA LED SENSOR

One-row plastic industrial LED light fitting with motion detector, with diffuser made of translucent polycarbonate.

The light fitting is suitable for industrial indoor and outdoor roofed spaces, warehouses, sports areas, workshops, garages, transport terminals, utility structures and laboratories without a danger of explosion of gases, dust and combustible fumes.

The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

(It is necessary to consider exhalation in the air which can reduce the usability of the plastic at installations in an aggressive environment)

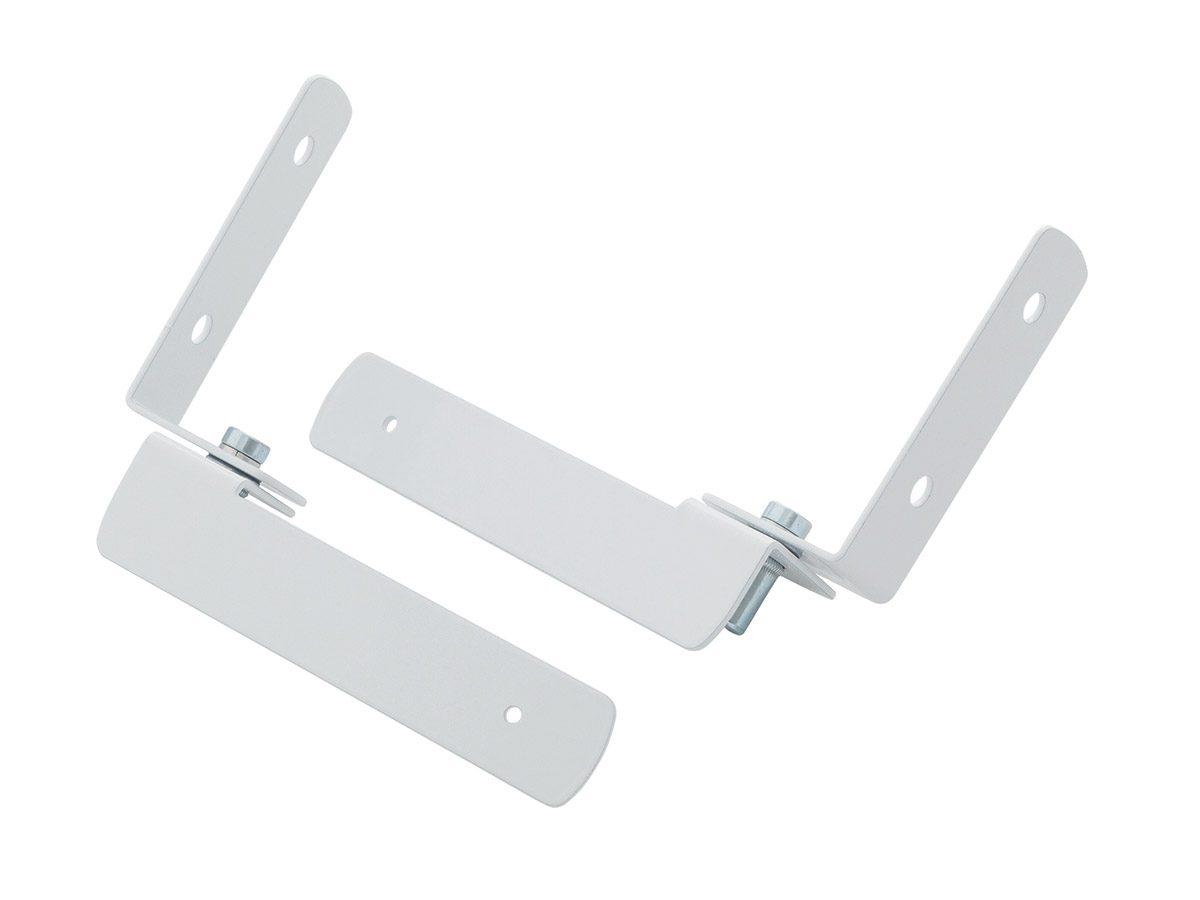

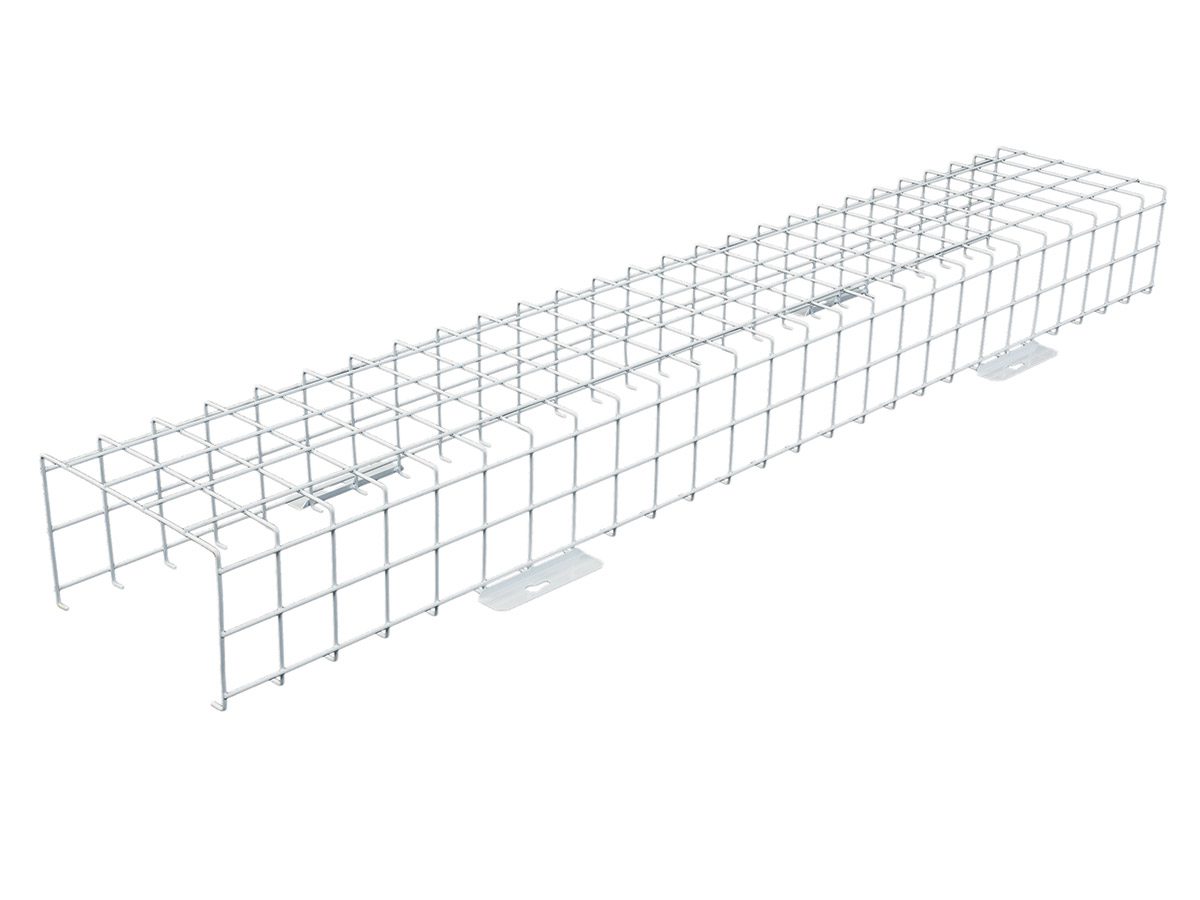

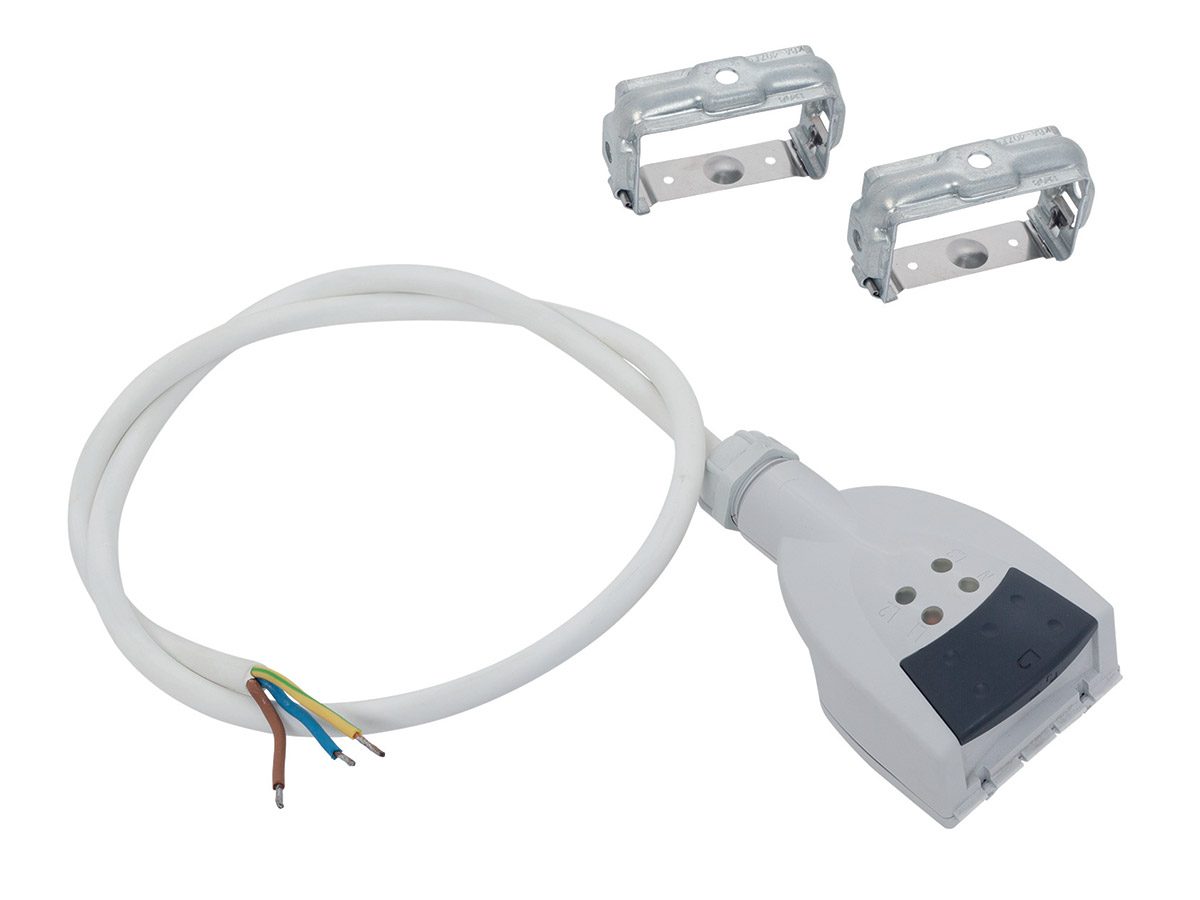

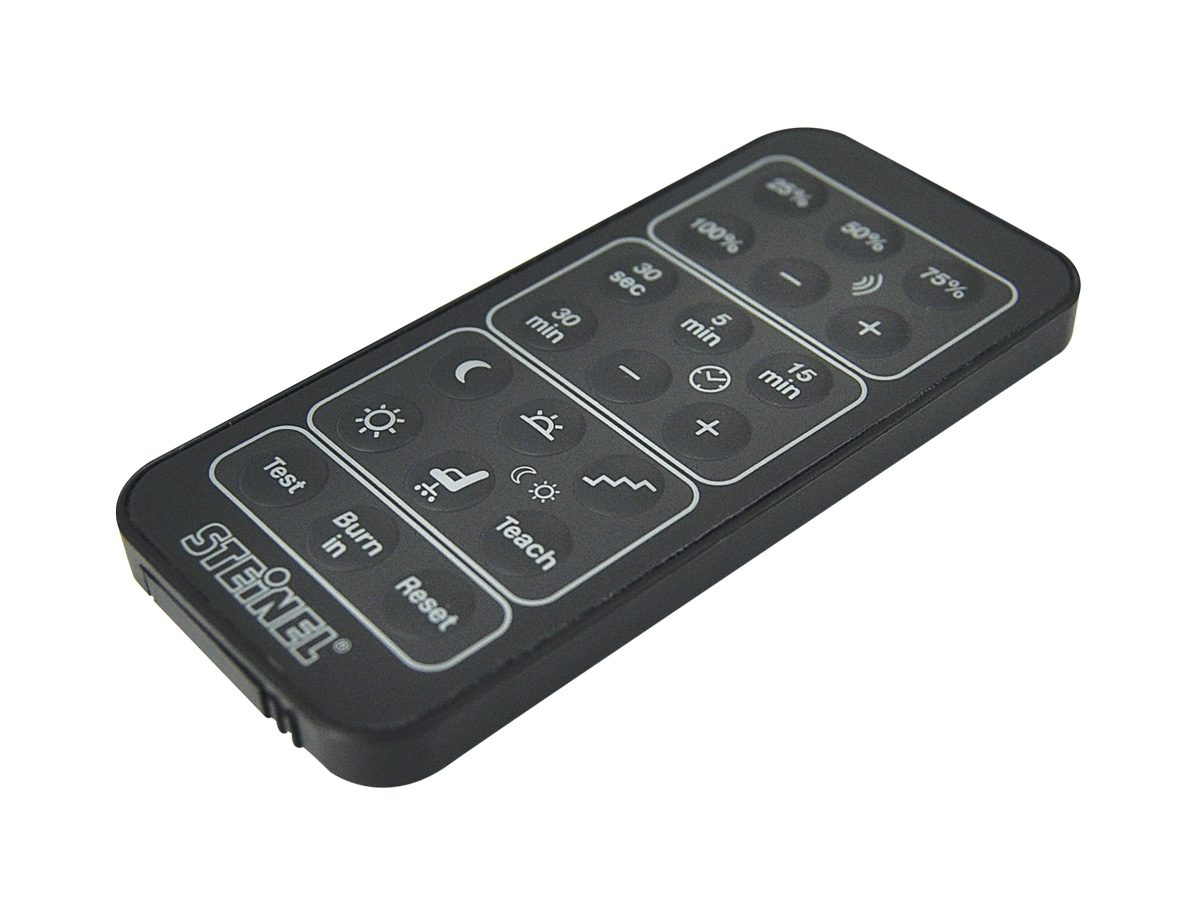

Accessories to PRIMA LED SENSOR

Technical Specifications

Standard model 4000 K
Light fitting protection IP66
Maximum ambient temperature ta = 35 °C
Lifetime 50,000 hours
Motion sensor 360° range, switch on height 1 – 8 m, time range 10 sec – 60 min, switch-on sensitivity 2 – 2000 lux
Diffuser translucent polycarbonate (PC), UV stable, impact-resistant
Reflector steel sheet, white colour (RAL 9003)
Body grey polycarbonate (PC), UV stable, impact-resistant
Cable glands screwed PG 13,5, or rubber
Clips polyamide + 15 % glass fibre or stainless steel + polyamide
Electric equipment LED modules, current driver or current driver DALI

Product Variants

Power Consumption (W) Luminous flux of LED modules (lm)
10 1300
12 1600
15 2200
18 2600
22 3200
30 4400
46 6400
22 3250
27 4000
37 5500
58 8000
