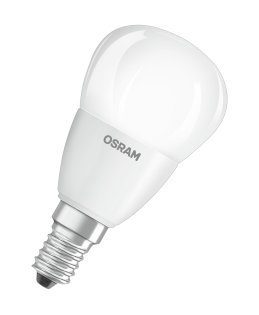

PARATHOM CLASSIC P Advanced

Dimmable LED lamps, classic mini-ball shape

Product Benefits

  • Very long lifetime of up to 25,000 h
  • Low energy consumption
  • Easy replacement of classic lamps thanks to compact design
  • High color consistency thanks to narrow binning

Areas of application

  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires

Product features

  • LED alternative to conventional lamps
  • Mercury-free lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • High color consistency: < 6 SDCM
  • Dimmable

P CLAS P 25 270° ADV 3.2 W/827 E14 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 3.20 W
  • Nominal wattage: 3.20 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 25 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 250 lm
  • Rated luminous flux: 250 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): < 0.50 s
  • Starting time: 0.0 s

DIMENSIONS & WEIGHT

  • Overall length: 90.0 mm
  • Diameter: 45.0 mm
  • Outer bulb: P45
  • Length: 90.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 4 kWh/1000h

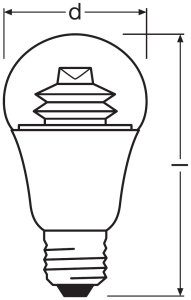

Product line drawing
Environment

P CLAS A 40 5 W/827 E27 CS

Predecessor product data (see Downloads Tab)

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 4.75 W
  • Nominal wattage: 5.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 40 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): < 0.50 s
  • Starting time: ≤ 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 97.0 mm
  • Diameter: 55.0 mm
  • Outer bulb: A55
  • Length: 97.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 5 kWh/1000h
Product line drawing
Environment

P CLAS A 40 5 W/827 E27 FR

Predecessor product data (see Downloads Tab)

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 5.00 W
  • Nominal wattage: 5.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 40 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 5 kWh/1000h
Product line drawing
Environment

P CLAS A 40 5 W/827 E27 CL

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 5.00 W
  • Nominal wattage: 5.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 40 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 5 kWh/1000h
Product line drawing
Environment

P CLAS A 60 10 W/827 E27

Predecessor product data (see Downloads Tab)

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 8.00 W
  • Nominal wattage: 8.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 60 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 806 lm
  • Rated luminous flux: 806 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 8 kWh/1000h
Product line drawing
Environment

P CLAS A 40 5 W/840 E27

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 5.00 W
  • Nominal wattage: 5.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 40 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 4000 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 5 kWh/1000h
Product line drawing
Environment

P CLAS A 60 10 W/840 E27

Predecessor product data (see Downloads Tab)

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 8.00 W
  • Nominal wattage: 8.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 60 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 806 lm
  • Rated luminous flux: 806 lm
  • Color temperature: 4000 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 8 kWh/1000h
Product line drawing
Environment

P CLAS A 75 10 W/827 E27 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 10.00 W
  • Nominal wattage: 10.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 75 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 1055 lm
  • Rated luminous flux: 1055 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 10 kWh/1000h
Product line drawing
Environment

P CLAS A 75 12 W/840 E27

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 10.00 W
  • Nominal wattage: 10.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 75 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 1055 lm
  • Rated luminous flux: 1055 lm
  • Color temperature: 4000 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Cool White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 10 kWh/1000h
Product line drawing
Environment

P CLAS A 60 8.5 W/827 E27

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 8.50 W
  • Nominal wattage: 8.50 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 60 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 806 lm
  • Rated luminous flux: 806 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): < 0.50 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 9 kWh/1000h

P CLAS A 150 20 W/827 E27

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 20.00 W
  • Nominal wattage: 20.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 150 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 2452 lm
  • Rated luminous flux: 2452 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): < 0.50 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 143.0 mm
  • Diameter: 67.0 mm
  • Outer bulb: A66
  • Length: 143.0 mm

LIFESPAN

  • Nominal lamp life time: 15000 h
  • Rated lamp life time: 15000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: No

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 20 kWh/1000h
Product line drawing
Environment
TOP
