PARATHOM MR11 12V Advanced

Dimmable low-voltage LED reflector lamps MR11 with retrofit pin base

Product Benefits

  • Long lifetime of up to 25,000 h
  • Low energy consumption
  • Easy relamping thanks to compact design and GU4 base
  • Instant 100 % light, no warm-up time

Areas of application

  • Display cabinets and shop windows
  • Museums, art galleries
  • Exhibition rooms
  • Hospitality
  • Residential interiors
  • As a downlight for marking walkways, doors, stairs, etc
  • Outdoor applications only in suitable luminaires

Product features

  • Professional LED alternative to halogen MR11 lamps
  • Compatible with many common electronic control gears
  • Mercury-free lamps
  • Good color rendering index Ra: ≥ 80
  • Dimmable

P MR11 20 30° ADV 3.1 W/827 GU4

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 3.10 W
  • Nominal wattage: 3.10 W
  • Nominal voltage: 12 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.40
  • Claimed equiv. conventional lamp power: 20 W

PHOTOMETRICAL DATA

  • Luminous intensity: 500 cd
  • Nominal luminous flux: 184 lm
  • Rated luminous flux: 184 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Beam angle: 30 °
  • Warm-up time (60 %): < 0.50 s
  • Starting time: < 0.50 s

DIMENSIONS & WEIGHT

  • Overall length: 39.0 mm
  • Diameter: 35.0 mm
  • Outer bulb: MR35
  • Length: 39.0 mm
  • Maximum diameter: 35.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 3 kWh/1000h

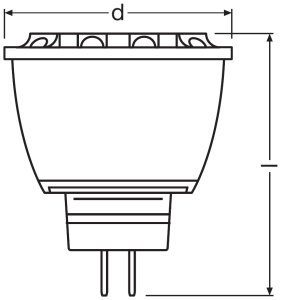

Product line drawing
