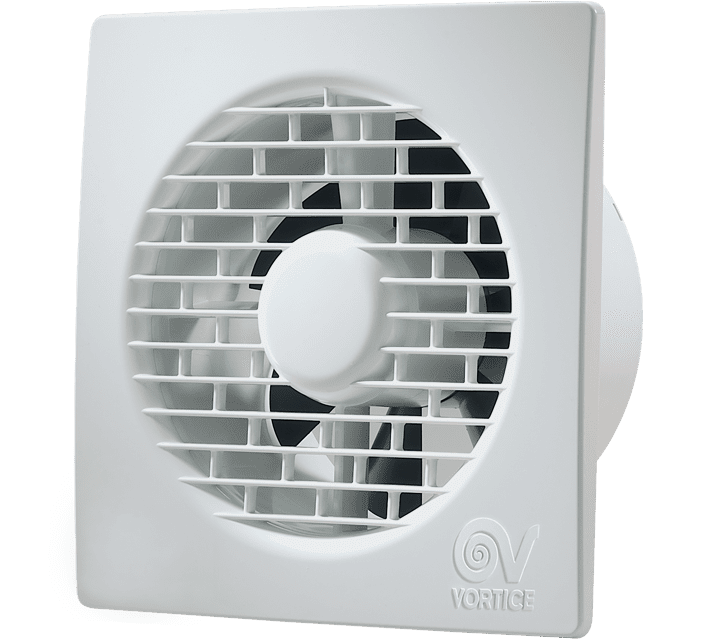

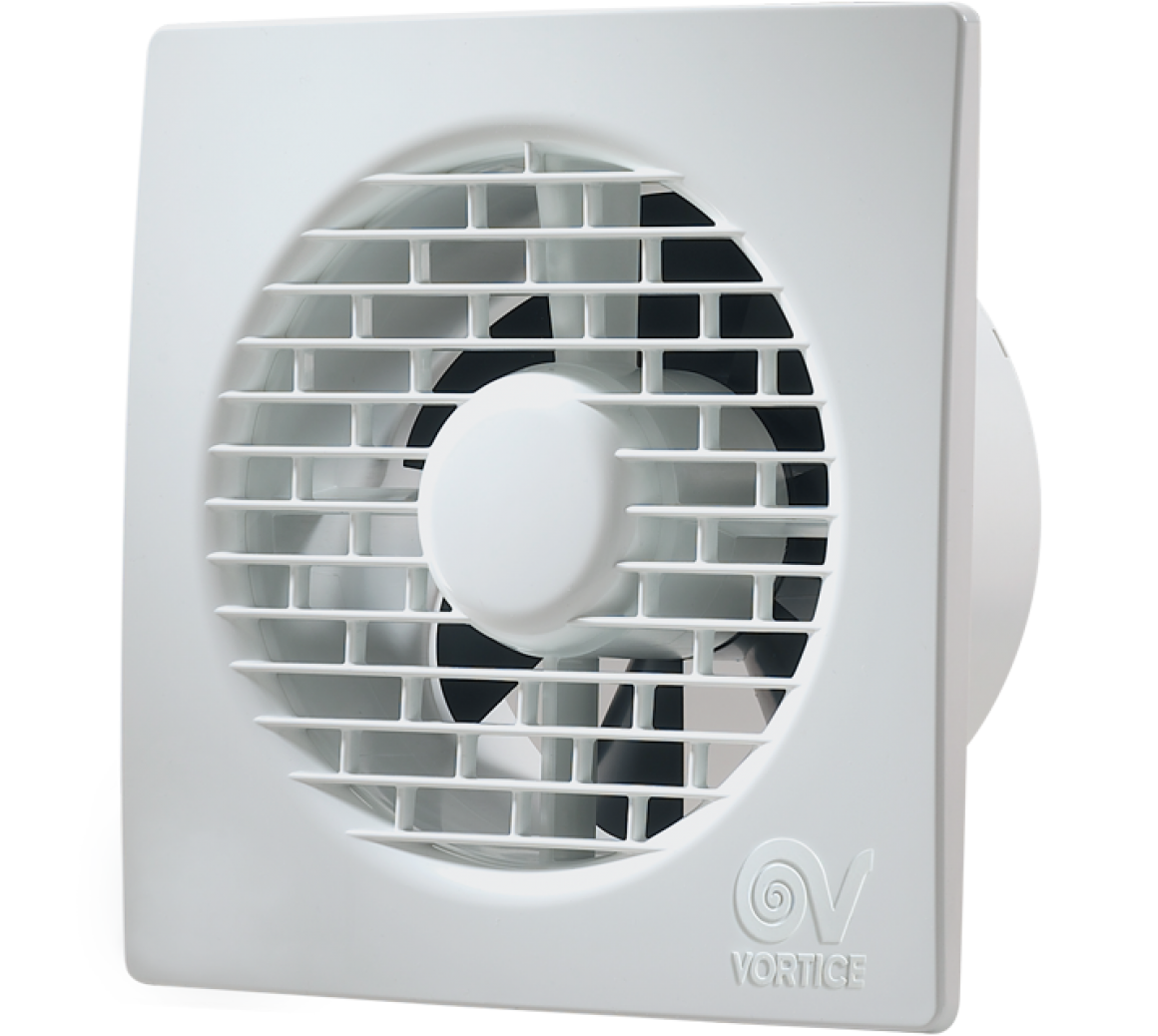

WALL AXIAL FAN MF 100/4"

features

Main features

  • Material: UV resistant plastic (prevents ageing caused by exposure to sunlight)

  • Nominal diameter 100 mm

  • Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades

  • Maximum air flow: 85 m3/h

Technical Data Sheet

  • Absorbed Current max: 0,09 A

  • Absorbed Power max: 15 W

  • Frequency: 50 Hz

  • Weight: 0,51 Kg

  • Voltage: 230 - 240 V

  • RPM: 2400

  • Max ambient temperature for continuous operation: 50º

Energy Data

  • Specific Energy Consumption class SEC average: -5,4 kWh/m2a

  • Specific Energy Consumption class SEC cold: -18,7 kWh/m2a

  • Specific Energy Consumption class SEC warm: 2,3 kWh/m2a

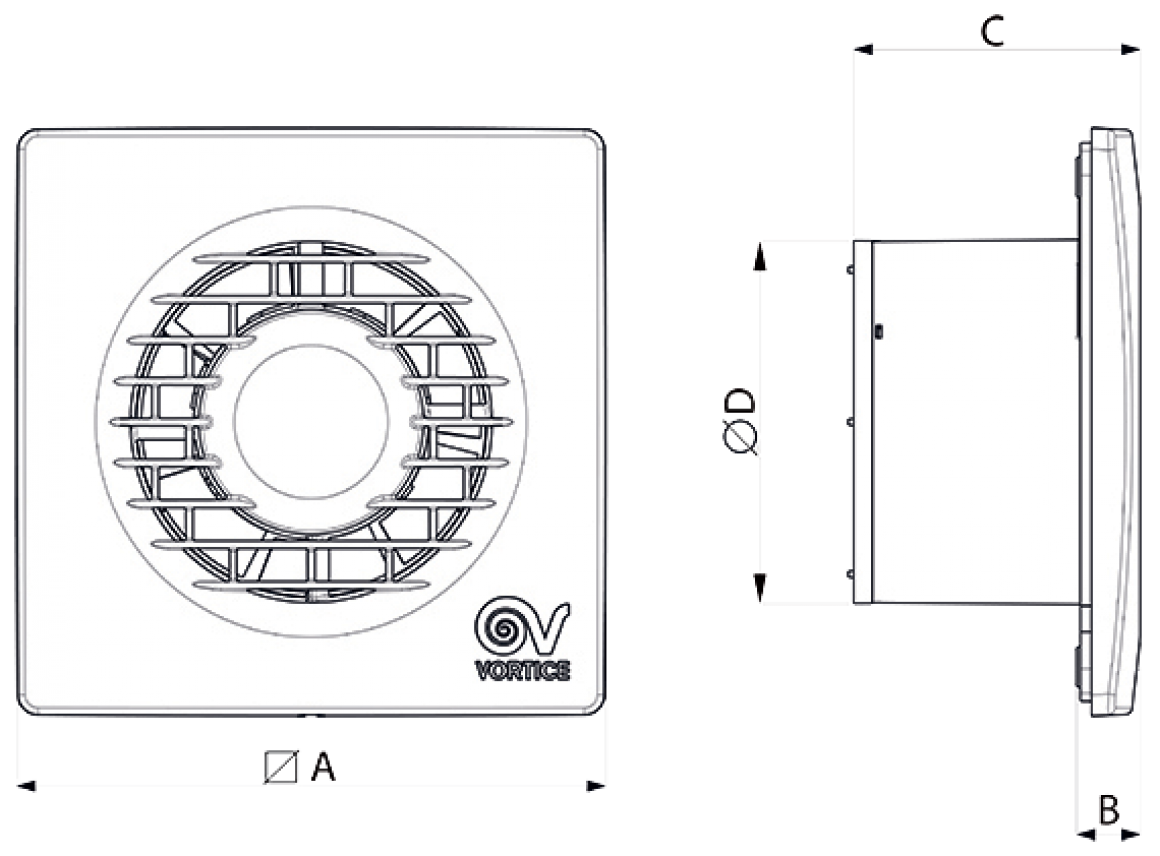

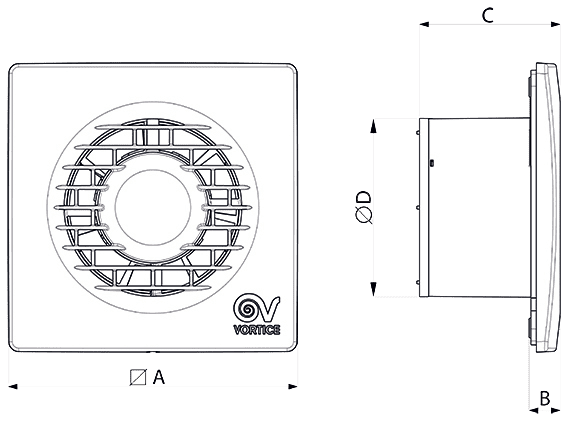

Dimensions

  • Size A: 159 mm

  • Size B: 17 mm

  • Size C: 77 mm

  • Size D: 98 mm
