INFRARED WALL HEATER

features

Main features

  • End sections made of thermoplastic nylon, colour grey

  • Front casing: pressed steel with painted finish, colour silver; rear casing, junction box and wall fixing: pressed steel with painted finish, colour grey

  • 3 x infrared bar, each rated 600 W

  • Pull cord switches for on/off control and selection of the 3 heat output settings (600/1200/1800 W)

  • Wall-mounted installation using bracket provided as standard and adjustable through 22° so that the infrared rays can be directed at the point where heat is required; the fixture is made secure with a safety screw

Technical Data Sheet

  • Absorbed Current max: 7,8 A

  • Absorbed Power max: 1800 W

  • Frequency: 50/60 Hz

  • Weight: 1,6 Kg

  • Voltage: 230 V

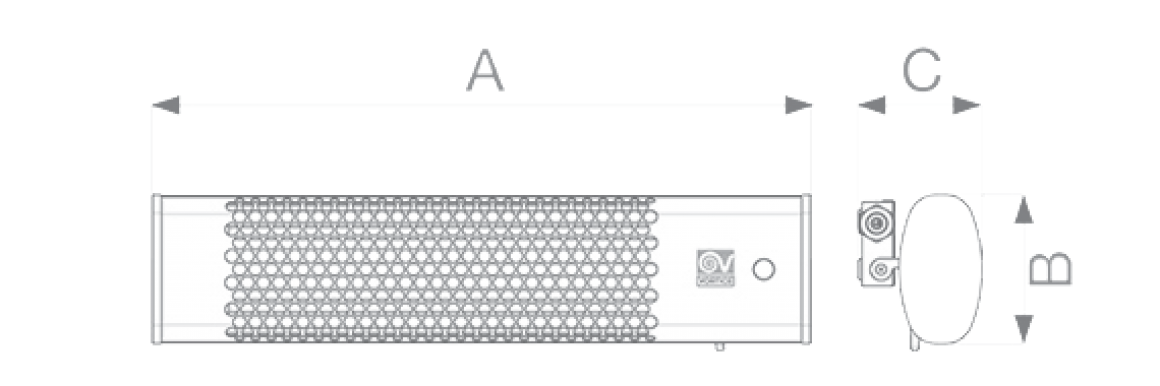

Dimensions

  • Size A: 540 mm

  • Size B: 123 mm

  • Size C: 100 mm
