PARATHOM CLASSIC A Advanced

Dimmable LED Lamps, classic bulb shapes

Product Benefits

  • Very long lifetime of up to 25,000 h
  • High color consistency thanks to narrow binning
  • Low energy consumption
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time

Areas of application

  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires

Product features

  • LED alternative to conventional lamps
  • Mercury-free lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • High color consistency: < 6 SDCM
  • Dimmable

P CLAS A 40 ADV 6 W/827 E27 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 5.40 W
  • Nominal wattage: 6.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: 0.92
  • Claimed equiv. conventional lamp power: 40 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: ≤ 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 97.0 mm
  • Diameter: 55.0 mm
  • Outer bulb: A55
  • Length: 97.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 6 kWh/1000h

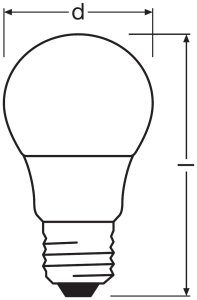

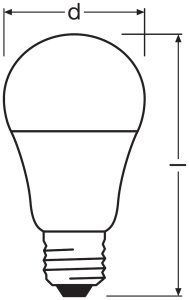

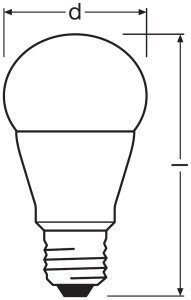

Product line drawing
Environment

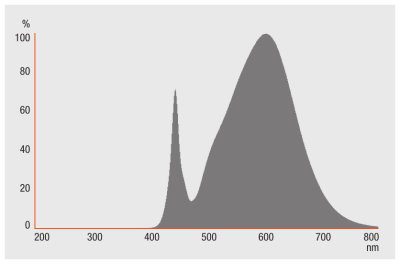

Spectral power distribution

P CLAS A 40 ADV 6 W/827 E27 CL

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 5.40 W
  • Nominal wattage: 6.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: 0.92
  • Claimed equiv. conventional lamp power: 40 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: ≤ 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 97.0 mm
  • Diameter: 55.0 mm
  • Outer bulb: A55
  • Length: 97.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 6 kWh/1000h

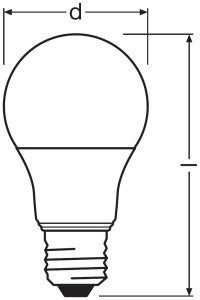

Product line drawing
Environment

P CLAS A 40 ADV 6 W/840 E27 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 6.00 W
  • Nominal wattage: 6.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: 0.95
  • Claimed equiv. conventional lamp power: 40 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 4000 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): 0.00 s
  • Starting time: 0.0 s

DIMENSIONS & WEIGHT

  • Overall length: 97.0 mm
  • Diameter: 55.0 mm
  • Outer bulb: A55
  • Length: 97.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 6 kWh/1000h
Product line drawing
Environment

P CLAS A 40 300° ADV 6 W/827 E27 CL

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 6.00 W
  • Nominal wattage: 6.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 40 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 6 kWh/1000h

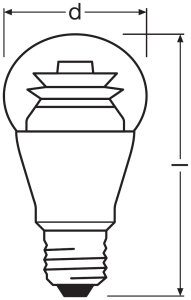

Product line drawing
Environment

P CLAS A 40 300° ADV 6 W/827 E27 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 6.00 W
  • Nominal wattage: 6.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 60 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 470 lm
  • Rated luminous flux: 470 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 6 kWh/1000h
Product line drawing
Environment

P CLAS A 60 ADV 9 W/827 E27 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 9.00 W
  • Nominal wattage: 9.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: 0.95
  • Claimed equiv. conventional lamp power: 60 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 806 lm
  • Rated luminous flux: 806 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): < 0.50 s
  • Starting time: ≤ 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 9 kWh/1000h
Product line drawing
Environment

P CLAS A 60 ADV 10 W/840 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 9.00 W
  • Nominal wattage: 9.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 60 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 806 lm
  • Rated luminous flux: 806 lm
  • Color temperature: 4000 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 9 kWh/1000h
Product line drawing
Environment

P CLAS A 60 10 W/827 E27

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 10.00 W
  • Nominal wattage: 10.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 60 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 806 lm
  • Rated luminous flux: 806 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 10 kWh/1000h
Product line drawing
Environment

P CLAS A 60 300° ADV 9 W/827 E27 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 9.00 W
  • Nominal wattage: 9.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 60 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 806 lm
  • Rated luminous flux: 806 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 9 kWh/1000h
Product line drawing
Environment

P CLAS A 75 300° ADV 9 W/827 E27 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 9.00 W
  • Nominal wattage: 9.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 75 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 1055 lm
  • Rated luminous flux: 1055 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): ≤ 1.00 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 110.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 110.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 9 kWh/1000h

P CLAS A 100 ADV 14.5 W/827 E27 N/A

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 14.50 W
  • Nominal wattage: 14.50 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.60
  • Claimed equiv. conventional lamp power: 100 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 1521 lm
  • Rated luminous flux: 1521 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): < 0.50 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 120.0 mm
  • Diameter: 60.0 mm
  • Outer bulb: A60
  • Length: 120.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 15 kWh/1000h
Product line drawing
Environment

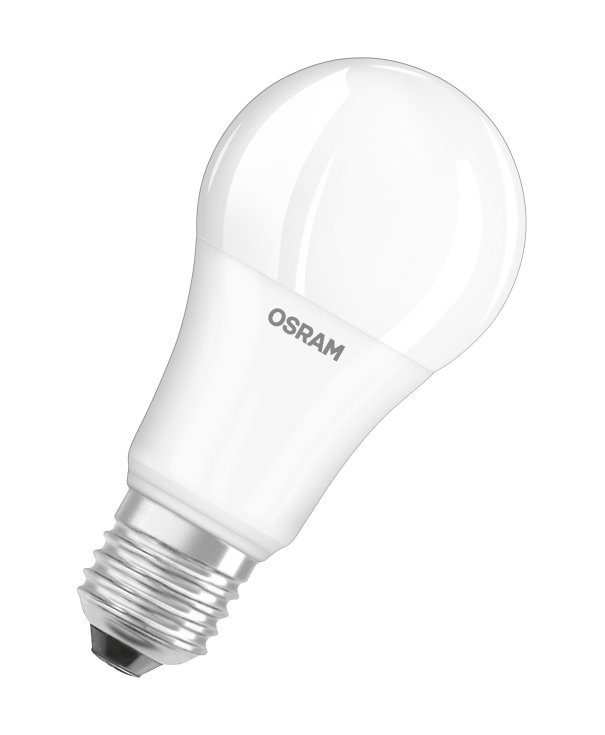

P CLAS A 100 ADV 15 W/827 E27 FR

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 14.50 W
  • Nominal wattage: 15.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.50
  • Claimed equiv. conventional lamp power: 100 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 1522 lm
  • Rated luminous flux: 1522 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): < 0.50 s
  • Starting time: ≤ 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 126.0 mm
  • Diameter: 62.0 mm
  • Outer bulb: A60
  • Length: 126.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 15 kWh/1000h

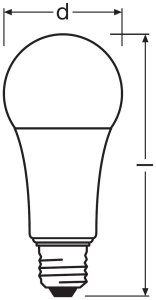

Product line drawing
Environment

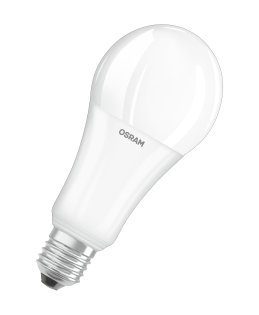

P CLAS A 150 ADV 21 W/827 E27 N/A

Energy Label (see Donwloads Tab)

ELECTRICAL DATA

  • Rated wattage: 21.00 W
  • Nominal wattage: 21.00 W
  • Nominal voltage: 220 - 240 V
  • Operating frequency: 50 - 60 Hz
  • Power factor λ: > 0.90
  • Claimed equiv. conventional lamp power: 150 W

PHOTOMETRICAL DATA

  • Nominal luminous flux: 2500 lm
  • Rated luminous flux: 2500 lm
  • Color temperature: 2700 K
  • Color rendering index Ra: ≥80
  • Light color (designation): Warm White
  • Standard deviation of color matching: ≤6 sdcm

LIGHT TECHNICAL DATA

  • Warm-up time (60 %): < 0.50 s
  • Starting time: < 0.5 s

DIMENSIONS & WEIGHT

  • Overall length: 143.0 mm
  • Diameter: 67.0 mm
  • Outer bulb: A66
  • Length: 143.0 mm

LIFESPAN

  • Nominal lamp life time: 25000 h
  • Rated lamp life time: 25000 h
  • Number of switching cycles: 100000

CAPABILITIES

  • Dimmable: Yes

CERTIFICATES & STANDARDS

  • Energy efficiency class: A+
  • Energy consumption: 21 kWh/1000h
Product line drawing
Environment
TOP
