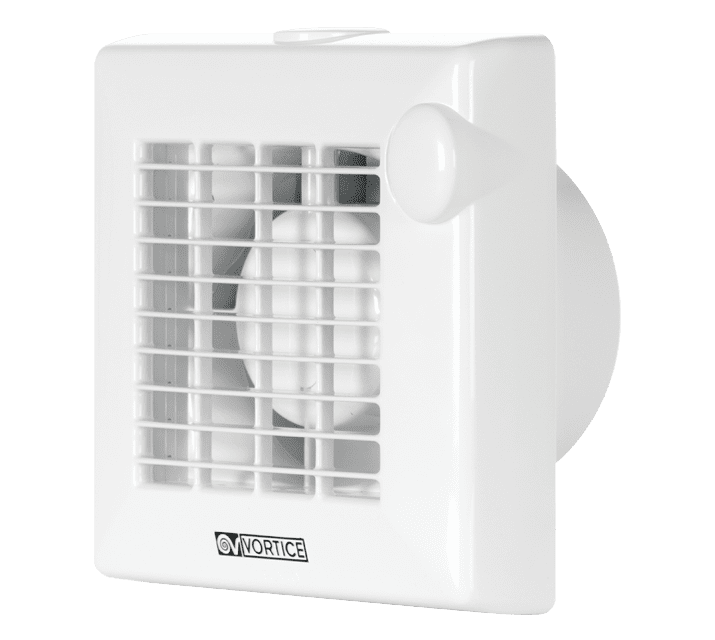

WALL/WINDOW AXIAL FAN M 150/6"

features

Main features

  • Material: UV resistant plastic (prevents ageing caused by exposure to sunlight)

  • Nominal diameter 150 mm

  • Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades

  • Maximum air flow: 335 m3/h

Technical Data Sheet

  • Absorbed Current max: 0,15 A

  • Absorbed Power max: 30 W

  • Frequency: 50 Hz

  • Weight: 1,1 Kg

  • Voltage: 230 - 240 V

  • RPM: 2100

  • Max ambient temperature for continuous operation: 50º

Energy Data

  • Specific Energy Consumption class SEC average: -9,7 kWh/m2a

  • Specific Energy Consumption class SEC cold: -23,0 kWh/m2a

  • Specific Energy Consumption class SEC warm: -2,0 kWh/m2a

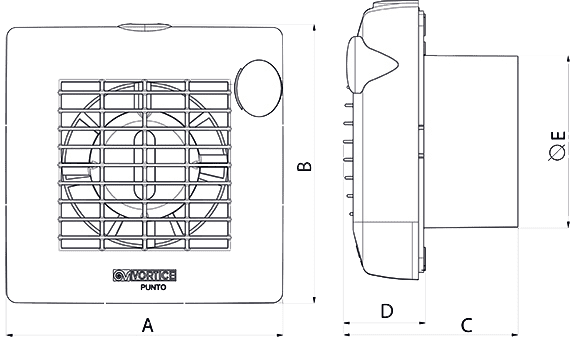

Dimensions

  • Size A: 214 mm

  • Size B: 215 mm

  • Size C: 117 mm

  • Size D: 47 mm

  • Size E: Ø 156 mm
