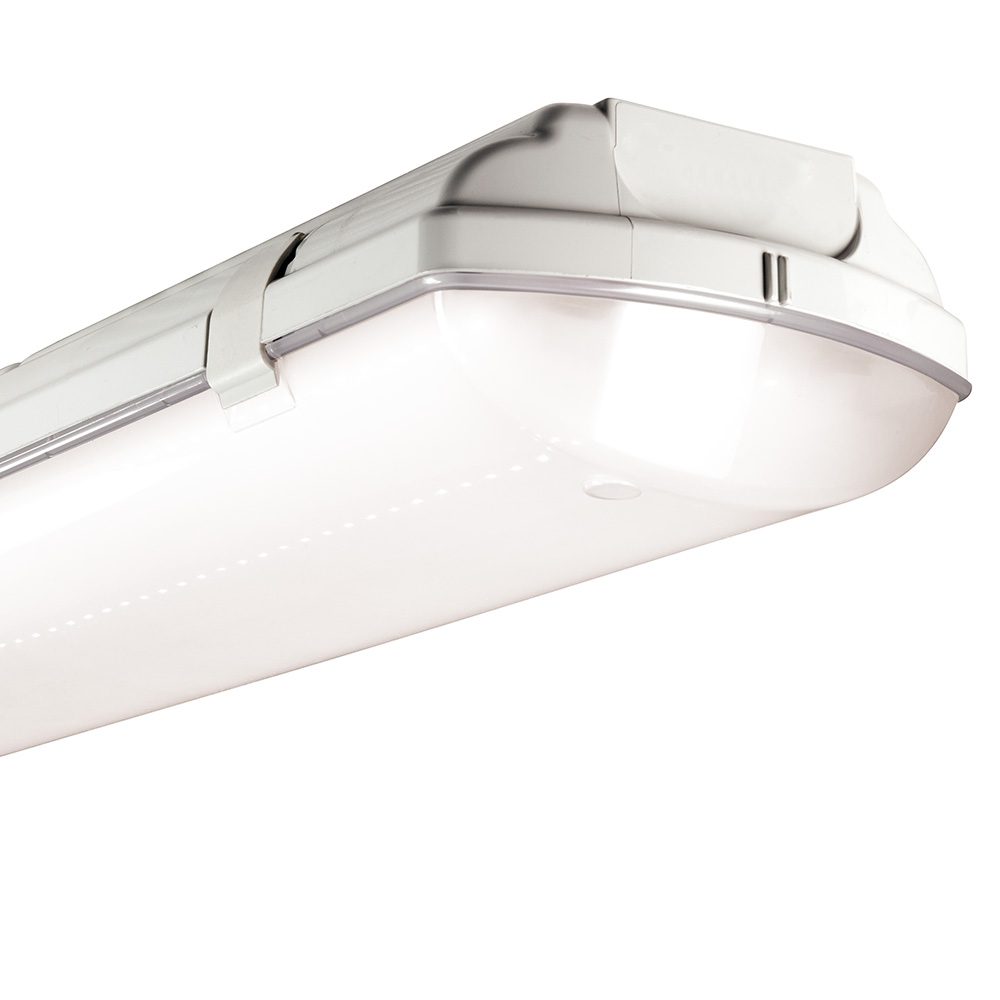

BS 100 LED (New)

Anti-glare micro-structured screen

On the surface it appears to be a simple receptacle, in reality it is the fruit of a project that goes well beyond appearance. The excellent mechanical characteristics are those of a revolutionary product, both in terms of luminosity and multi-functionality of use. The 8500 Im luminous flux is just the first example of the technology enclosed in this device that with Smart Driver technology can be enhanced to become a Smart Lighting optic already partially present in the base products equipped with an Autodimmer system.
In addition, the innovative anti-glare micro-structured screen significantly reduces flare without affecting the luminous flux. The special Parking version has been designed to adapt to underground conditions that demand extensive illumination over a large groundlevel area but with highly reduced height availability.

Technical Specifications

Plus Screen with anti-glare surface finish microstructured
Installations Ceiling, suspensions
Body Polycarbonate, RAL 7035
Optic White reflective powder coated steel
Screen Micro-structured finished high transmission polycarbonate
Power 2x18, 2x36, 2x58, 2x80 W
Light source LED
Room temperature -20°+40°C
Temperature 4000 K
Energy class A++
Degree of protection IP65
Dimensions (2x18 W) Length: 671 mm | Width: 170 mm | Height: 95 mm
Dimensions (2x36 W) Length: 1280 mm | Width: 121 mm | Height: 82 mm
Dimensions (2x58 W) Length: 1581 mm | Width: 170 mm | Height: 95 mm
Dimensions (2x80 W) Length: 1581 mm | Width: 121 mm | Height: 82 mm

BS 100 LED Parking (SmartDriver System)

Power LED Power LED Flux Luminous efficiency
2x36 W 48 W 7750 lm 106 lm/W

BS 100 LED (SmartDriver System)

Power LED Power LED Flux Luminous efficiency
1x18 W 9 W 1900 lm 133 lm/W
2x18 W 19 W 3300 lm 127 lm/W
1x36 W 21 W 4000 lm 135 lm/W
2x36 W 42 W 7000 lm 121 lm/W
1x58 W 29 W 5000 lm 129 lm/W
2x58 W 59 W 9250 lm 117 lm/W
2x80 W 68 W 8500 lm 116 lm/W

BS 100 LED (EcoDriver System)

Power LED Power LED Flux Luminous efficiency
2x18 W 18 W 2900 lm 132 lm/W
2x36 W 36 W 5800 lm 132 lm/W
2x58 W 47 W 7700 lm 132 lm/W
